GGD Low Voltage Distribution Enclosure & Auxiliary Materials
Complete one-stop solution: GGD type low-voltage distribution cabinets plus all auxiliary materials — copper busbars, cable accessories, DIN rails, earthing, insulation, cooling and control components — for fully assembled, standards-compliant power distribution systems.
Product Overview
GOHO supplies GGD type low-voltage distribution enclosures together with a complete range of auxiliary materials and electrical accessories, enabling a single-source procurement for the entire power distribution assembly.
GGD type low-voltage distribution enclosures are used for power distribution in power plants, mining enterprises, industrial facilities and transformer substations. These cabinets deliver reliable service and ensure all electrical distribution requirements are met for various industrial and commercial applications — controlling motor starting sequences, power distribution and lighting circuits.
Beyond the enclosure, GOHO provides every auxiliary material and accessory needed to assemble a complete, standards-compliant distribution system: copper busbars and supports, cable lugs and glands, DIN rails and mounting hardware, earthing components, insulation materials, terminal blocks and wire ducts, plus cooling and ventilation accessories.
Sourcing the enclosure and all auxiliary components from a single supplier simplifies procurement, guarantees mechanical and electrical compatibility, and shortens assembly lead time — ensuring voltage distribution systems operate efficiently, safely and in compliance with IEC 61439 and GB/T 7251.
- GGD enclosures in cold-rolled steel with epoxy powder coating
- T2 electrolytic copper busbars and insulated busbar supports
- Full cable accessory range: lugs, glands, ties, heat shrink, markers
- DIN rails, mounting plates, chassis rails and fixing brackets
- Earthing bars, screws and braids; insulation boots, barriers and tape
- Terminal blocks, wire ducts, trunking, grilles, filter fans and heaters
Product Gallery

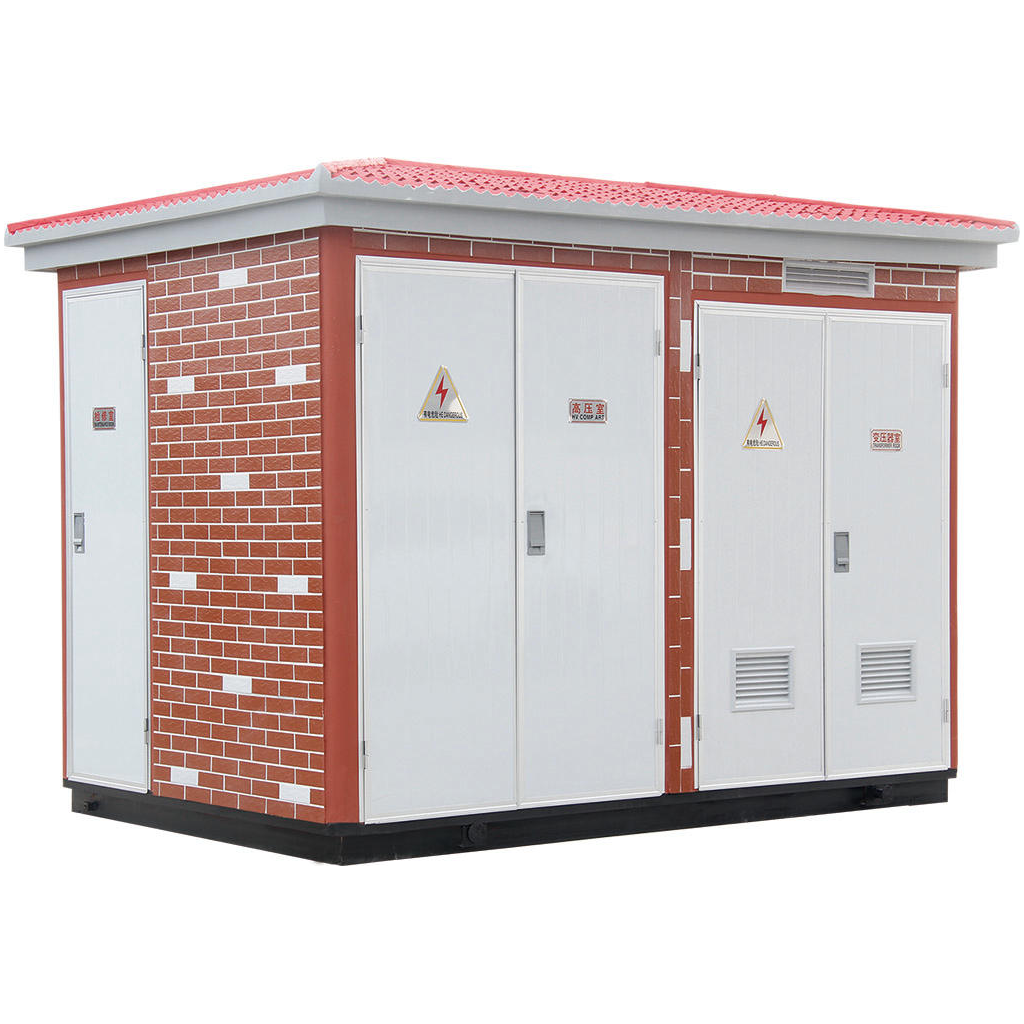

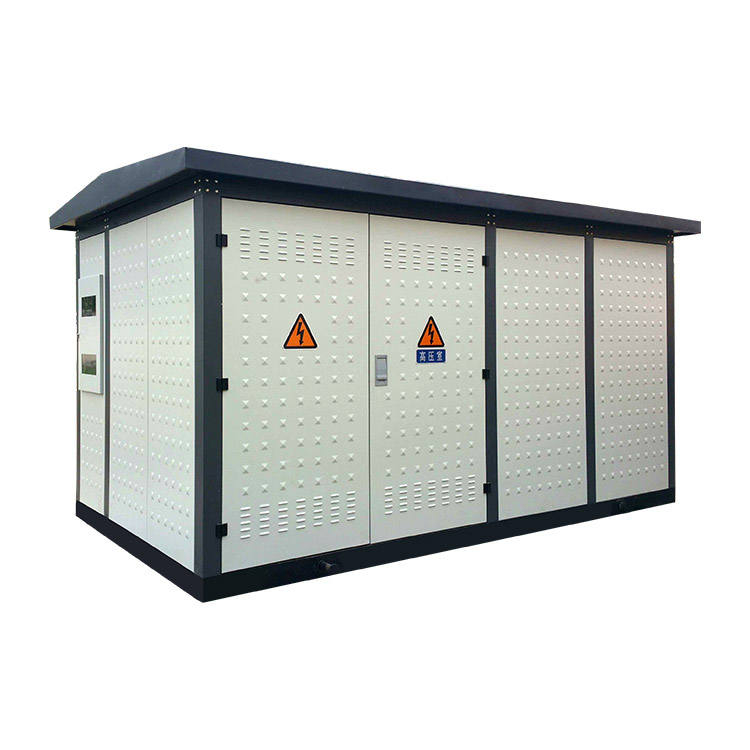

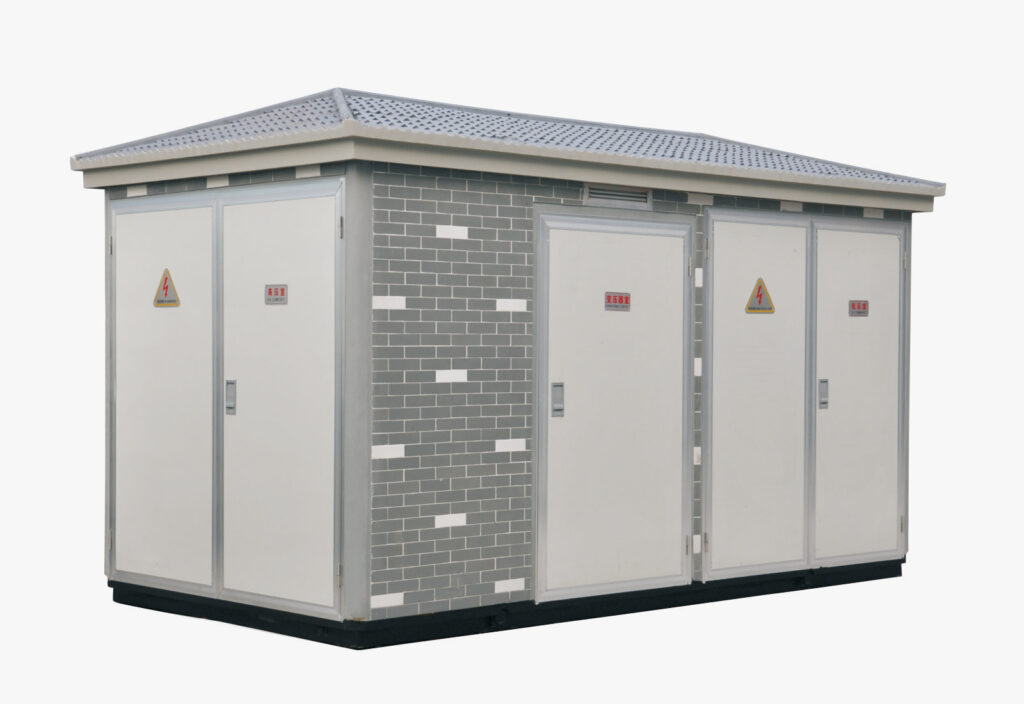

GOHO auxiliary materials are compatible across the full low-voltage switchgear range — GGD, GCS, MNS, XL-21 and integrated substations. Click any image to enlarge.
Technical Specifications (GGD Enclosure)
Electrical, mechanical and environmental parameters for the GOHO GGD type low-voltage distribution enclosure.
| Rated Voltage | 400 V / 690 V |
|---|---|
| Rated Current (Main Busbar) | Up to 3150 A |
| Rated Frequency | 50 Hz / 60 Hz |
| Degree of Protection | IP30 / IP40 / IP54 |
| Enclosure Material | Cold-rolled steel sheet, 1.5 – 2.0 mm thick |
| Surface Treatment | Epoxy powder coating (electrostatic spray) |
| Busbar Material | T2 electrolytic copper (optional tinned / silver-plated) |
| Busbar Cross-Section | Up to 120 × 10 mm (single or double stack) |
| Insulation Level | Up to 1000 V (AC) |
| Withstand Voltage | 2500 V / 1 min (power frequency) |
| Short-Time Withstand Current | Up to 80 kA (1 s) |
| Peak Withstand Current | Up to 176 kA |
| Form of Separation | Form 2 / Form 3 / Form 4 (selectable) |
| Mounting | Floor-standing (also wall-mounted junction boxes) |
| Color | RAL 7035 (standard) / custom RAL colors available |
| Door Type | Single / double door, with or without observation window |
| Cable Entry | Top / bottom / rear (customizable) |
| Ambient Temperature | -25°C to +40°C |
| Relative Humidity | ≤ 95% (non-condensing) |
| Altitude | Up to 2000 m (derating above) |
| Standards | IEC 61439, GB/T 7251, IEC 60439 |
| Certificate | CCC / CE / ISO 9001 |
| Warranty | 24 months from commissioning |
Available Auxiliary Materials & Accessories
A complete, single-source range of auxiliary materials to assemble a fully functional low-voltage distribution system.
| Category | Products Available |
|---|---|
| Enclosures | GGD type distribution cabinets, wall-mounted junction boxes, stainless steel enclosures |
| Busbar Systems | Copper busbars (T2 electrolytic copper), insulated busbar supports, busbar connectors |
| Cable Accessories | Cable lugs, cable glands, cable ties, heat shrink tubing, cable markers |
| Mounting Hardware | DIN rails, mounting plates, chassis rails, fixing brackets |
| Earthing Components | Copper earth bars, earthing screws, earthing braids |
| Insulation Materials | Insulating boots, phase barriers, insulating tape, silicone rubber sheets |
| Control Accessories | Terminal blocks, wire ducts, cable trunking, labeling systems |
| Cooling & Ventilation | Ventilation grilles, filter fans, space heaters, thermostat controllers |
Key Features
Nine reasons buyers choose GOHO GGD enclosures and auxiliary materials for their low-voltage distribution projects.
One-Stop Procurement
Enclosure plus every auxiliary material from a single supplier — eliminates multi-vendor sourcing, guarantees compatibility and shortens lead time from order to assembly.
Robust GGD Enclosure
Cold-rolled steel (1.5–2.0 mm) with epoxy powder coating for corrosion resistance and long service life in industrial, mining and substation environments.
High-Current Busbar System
T2 electrolytic copper busbars rated up to 3150 A with insulated supports and connectors — low contact resistance, reliable current carrying and easy expansion.
IP30 to IP54 Protection
Multiple ingress protection options to match the installation environment — from standard indoor IP30 to dust-tight IP54 for industrial and outdoor-adjacent areas.
Standards Compliant
Designed and tested to IEC 61439 and GB/T 7251, with CCC, CE and ISO 9001 certification — safe, reliable and accepted in international tenders and inspections.
Complete Cable Accessories
Cable lugs, glands, ties, heat-shrink tubing and markers — every termination and cable-management accessory needed for a clean, code-compliant installation.
Mounting & Wiring Hardware
DIN rails, mounting plates, chassis rails, terminal blocks, wire ducts and trunking — standard modular components for fast, flexible and maintainable internal assembly.
Earthing & Insulation
Copper earth bars, earthing screws and braids for protective bonding, plus insulating boots, phase barriers and silicone rubber sheets for safe phase separation.
Cooling & Climate Control
Ventilation grilles, filter fans, space heaters and thermostat controllers to maintain safe operating temperature and prevent condensation in demanding environments.
Applications
GGD enclosures and auxiliary materials serve a wide range of low-voltage power distribution scenarios.
Power Plant Auxiliary Distribution
Mining Enterprise Electrical Rooms
Industrial Facility Main Boards
Transformer Substation LV
Commercial Building Rooms
Motor Control Centers (MCC)
Lighting & Power Circuits
Infrastructure Projects
Certifications & Standards
Manufactured and tested in compliance with international and Chinese low-voltage switchgear standards.
IEC 61439
Low-voltage switchgear and controlgear assemblies
GB/T 7251
Low-voltage complete switchgear national standard
CCC / CE
China Compulsory & European Conformity
ISO 9001
Quality management system certified
Frequently Asked Questions
Common questions about GGD enclosures and GOHO auxiliary materials.
The package covers eight categories: enclosures (GGD cabinets, wall-mounted junction boxes, stainless steel enclosures), busbar systems (T2 copper busbars, supports, connectors), cable accessories (lugs, glands, ties, heat shrink, markers), mounting hardware (DIN rails, plates, chassis rails, brackets), earthing components, insulation materials, control accessories (terminal blocks, wire ducts, trunking, labeling) and cooling & ventilation accessories. Customers can order the full set or select only the categories required for their project.
The GGD enclosure supports a rated voltage of 400 V / 690 V and a main busbar rated current up to 3150 A. Short-time withstand current reaches up to 80 kA (1 s) with a peak withstand current of 176 kA, suitable for low-voltage main distribution in power plants, industrial plants and substations. The exact busbar cross-section (up to 120 × 10 mm, single or double stack) is selected according to your design current.
Yes. We offer customization for dimensions, door configuration (single/double, with or without observation window), cable entry direction (top/bottom/rear), color (standard RAL 7035 or custom RAL), degree of protection (IP30/IP40/IP54), form of separation (Form 2/3/4), internal layout and auxiliary component selection. Share your single-line diagram and site requirements and our engineers will propose an optimized configuration.
GGD is a fixed-type low-voltage distribution cabinet with components fixedly mounted — simple, economical and ideal for main distribution and motor control with infrequent maintenance. GCS is a withdrawable-type switchgear where function units can be plugged in/out for hot maintenance, making it better for high-reliability and frequent-switching applications. Both are available from GOHO; choose GGD for cost-sensitive main distribution and GCS for critical, maintainable systems.
Yes. The busbars, DIN rails, terminal blocks, cable accessories, earthing components and cooling accessories we supply are manufactured to industry-standard dimensions and are compatible with most mainstream low-voltage enclosure brands. We can also provide matched components as a complete kit for GGD, GCS, MNS, GCK and other switchgear types on request.
GOHO GGD enclosures are designed and tested to IEC 61439 (low-voltage switchgear assemblies) and GB/T 7251, and carry CCC, CE and ISO 9001 certifications. This makes them accepted for international tenders, third-party inspections and grid-connection audits worldwide. Type-test reports are available on request for your specific rated current and short-circuit ratings.
Related Products
Complementary GOHO products to complete your low-voltage power distribution system.
Need a Complete GGD Enclosure + Auxiliary Materials Package?
Send us your single-line diagram, rated current and site conditions — we will deliver a fully compatible, standards-compliant enclosure and component package with a formal quotation.
