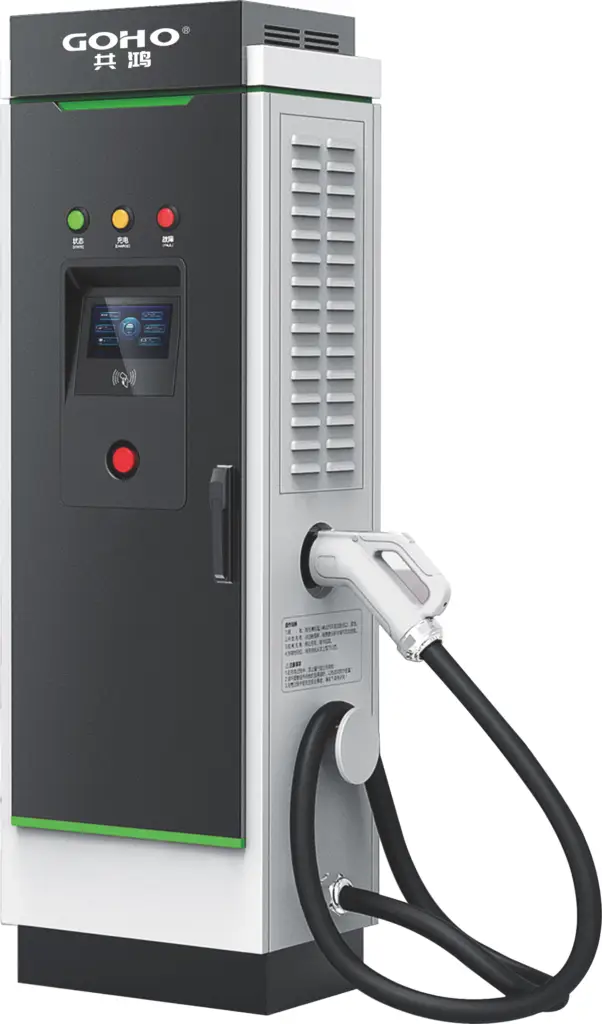

DC Dual-Gun Integrated Charger (120kW/160kW/180kW/240kW)
GOHO dual-gun integrated DC fast charging pile series is a high-efficiency electric vehicle charging solution designed for rapid multi-vehicle charging. Featuring a floor-standing design with concise and elegant appearance, stable frame structure, and complete functional configurations, this series meets the construction demands of various new energy charging stations.
Available in four power ratings — 120kW, 160kW, 180kW, and 240kW — the series shares an identical enclosure design, allowing stations to standardize on one product family while matching capacity to site requirements. The overall power can be flexibly configured according to power modules, while the user-friendly 7-inch touch screen ensures easy operation. The modular design enables convenient long-term equipment maintenance.
Technical Specifications (Series Overview)
| Item | Specification |
|---|---|
| Product Name | DC Dual-Gun Integrated Charger |
| Model | GHCDC-120 / GHCDC-160 / GHCDC-180 / GHCDC-240 |
| Output Power | 120kW / 160kW / 180kW / 240kW |
| Overall Dimension (mm) | 1750×700×550mm (all models) |
| Human-Machine Interaction | 7-inch Touch Screen |
| Input Voltage | AC380±15% (3-Phase 5-Wire System) |
| Max. Output Current | 200A / 250A / 300A / 400A |
| Output Voltage | 200V-750VDC (120/160kW); 200V-1000VDC (180/240kW) |
| Metering Accuracy | Class 0.5 |
| Operating Environment | Altitude: ≤2000m; Temperature: -20°C ~ 50°C |
| Charging Mode | Card Swipe, QR-Code Scanning, APP (optional) |
| Networking Mode | 4G, Ethernet |
| Input Frequency | 50±5Hz |
| Protection Functions | Over-voltage, Under-voltage, Over-current, Short-circuit, Surge, Earth-leakage |
| Charging Interface | GB/T 20234.2-2015 |
| Charging Cable Length | Standard 5m (Optional) |
| Ingress Protection Rating | IP54 |
| Housing Color | Panel White or Panel Grey (Optional) |
Key Features
- Dual-Gun Simultaneous Charging: The integrated dual-gun design allows two vehicles to charge simultaneously, with intelligent power distribution ensuring each vehicle receives optimal charging current — significantly improving station throughput and reducing queuing time
- Four Power Ratings, One Design: Available in 120kW, 160kW, 180kW, and 240kW configurations sharing an identical enclosure, enabling stations to standardize on one product family while matching capacity to site requirements
- Ultra-Fast Charging Speed: The 240kW model can charge most EVs from 20% to 80% in approximately 20-30 minutes, while even the 120kW model delivers rapid charging for daily commercial use
- Wide Output Voltage Range: Supports DC output from 200V up to 1000V (180/240kW models), accommodating passenger cars, taxis, buses, and next-generation 800V high-voltage vehicles
- Precision Energy Metering: Class 0.5 metering accuracy ensures accurate billing for commercial charging operations
- User-Friendly Interface: 7-inch touch screen provides clear real-time display of charging status, voltage, current, power, and energy consumption
- Multiple Charging Modes: Supports card swipe, QR-code scanning, and optional mobile APP charging
- Smart Networking: 4G and Ethernet connectivity enable remote monitoring and seamless CSMS integration
- Comprehensive Protection: Over-voltage, under-voltage, over-current, short-circuit, surge, and earth-leakage protection ensures safe operation
- Durable Floor-Standing Design: IP54 protection rating and corrosion-resistant housing for reliable outdoor installation in various climates
Applications
Suitable for large, medium, and small-scale EV charging stations, and public sites with EV parking spaces, such as urban residential communities, shopping plazas, power business halls, highway service areas, railway stations, docks, and other transportation hubs. Also applicable for real-estate and construction project acceptance requirements.
